Solar Inverter

3000W 24V Solar Inverter Charger

AC Input
AC Output
Product Model

Highlight:

  • All-in-one solar charge inverter: 3000 Watts Pure Sine Wave Inverter Combined with 80A MPPT solar charging and 40A AC battery charging, you can enjoy stable power from the sun and the utility grid to keep you powered under any circumstances.

  • Four charging modes: AC Priority, Solar Priority, Only Solar, and Mains & Solar hybrid charging, Designed with LCD/LED dynamic display of system data and operating status.
  • Uninterruptible Power Supply: If the main/generator is disconnected or the solar charging is insufficient, the Inverter Charger takes over the battery supply to the alternative option within 10ms, which will not let your electronics shut down.

  • Battery type: 24V AGM/Sealed, Gel, Flooded, Lithium batteries and a User Mode for custom inputs to work with virtually all battery types.

  • Reliable protection: including short circuit protection, over-voltage and under voltage, protection, overload protection, reverse protection, etc.


QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Features

SUNGOLDPOWER 3000W 24V solar inverter combines solar charging, AC/generator battery charging, and battery inverter into one complete unit to make your off-grid system work. This solar inverter charger is compatible with 24V battery packs. It provides four user-configurable AC/solar charging modes and three load output modes. It can turn your system into an uninterruptible power supply (UPS)with only 10 milliseconds automatically switching to off-grid to ensure the load is powered.

Main Features:

  • Built-in 60A MPPT solar charge controller, max PV input 1400W
  • 40A Smart AC charger
  • High-frequency transformer-less compact design
  • Pure sine wave AC 120V output with 50hz/60hz switch
  • Optional WiFi/ GPRS remote monitoring (extra cost)
  • Overload, short circuit, over-discharge protection
  • Auto-start the generator (Dry Contacts for delivering signal)

    Specification

    Inverter Mode:

    • Output: Pure Sine Wave
    • Surge Rating: 9000W (20 Seconds)
    • Peak Power: 4500VA
    • AC Output : 120VAC ,50HZ/60HZ
    • Input Voltage / Rated Battery: 24VDC (minimum start-up voltage:22V
    • Bypass Breaker Current: 40A
    • Idle Power: 50W
    • Power Saver Mode Idle Consumption: 25W
    MPPT Solar Charging Mode:
    • Maximum Input Power: 1400w
    • PV Charging Current: 0-60A
    • Max.PV Open Circuit Voltage: 100V
    • PV operation voltage range: 30-100VDC
    • Mppt Voltage Range: 30-85VDC
    • Recommended wire: 8 AWG

    AC Charging Mode:

    • Rated AC input: 110V, 50HZ/60HZ
    • Input Voltage Range: 90VAC-140VAC
    • Conversion Time: 10ms
    • Battery Type: Lead Acid and Lithium Battery
    • Maximum Charging Current: 40A
    • Charging Voltage Range:20-33VDC
    • Short-Circuit Protection: Breakers and fuses
    • Overcharge Protection: Yes. Automatically alerts and turns off charging after 1 min)

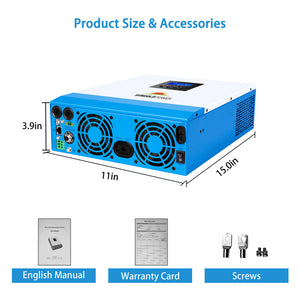

    Mechanical Specification:

    • Size: 378mm*280mm*103mm
    • Net Weight: 6.8kg
    • Noise: ≤60dB
    • Operating Temperature Range:5°F ~ 131°F/ -15°C ~ 55°C
    • Cooling Fan: Yes
      User Manual


      Download Pure Sine Wave Solar Inverter Charger User's Manual

      FAQ




      SUNGOLDPOWER 3000W 24V solar inverter combines solar charging, AC/generator battery charging and battery inverter into one complete unit to make your off-grid system working. This solar inverter charger is compatible with 24V battery packs. It provides four user-configurable AC/solar charging modes and three load output modes. It can turn your system into an uninterruptible power supply (UPS )with only 10 milliseconds automatically switching to off-grid to ensure the load powered.
