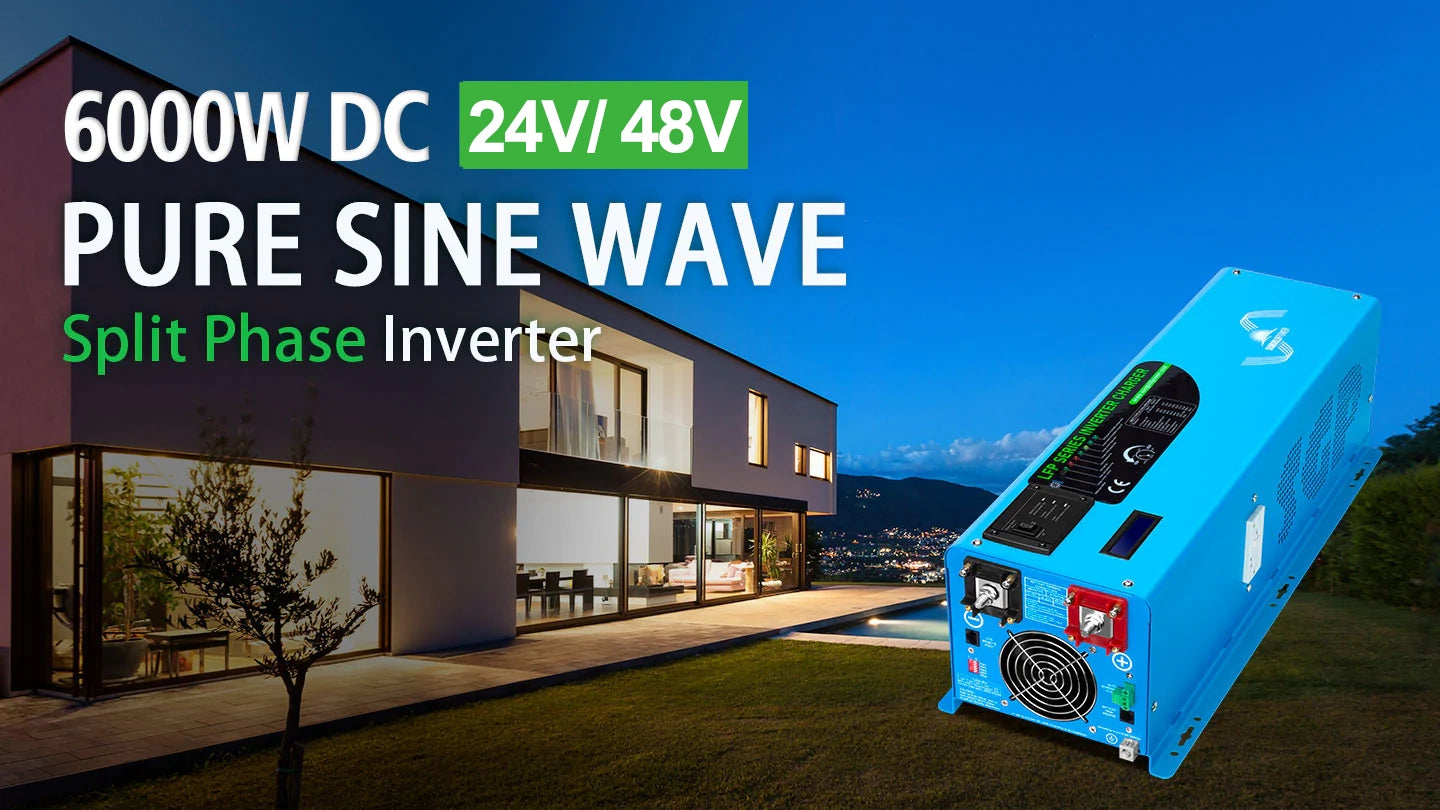

6000W DC 48V Split Phase Pure Sine Wave Inverter With Charger
- This Pure Sine Wave Inverter is a combination of an inverter, battery charger and AC auto-transfer switch. Low frequency, low Idle Current, remote control.
- Adjustable Charging Current: The max charge current can be adjusted from 0%-100% via a liner switch on the right of the battery type selector. This will be helpful if you are using our powerful charger on a small capacity battery bank.The liner switch can effectively reduce the max charging current to 20% of its peak.Choosing “0” in the battery type selector will disable charging function.
- AC/Battery Priority: Our inverter is designed with AC priority by default, when AC input is present, the battery will be charged first, and the inverter will transfer the input AC to power the load. The inverter can be easily customized to Battery priority via a DIP switch, When you choose battery priority, the inverter will invert from battery despite the AC input.
- Auto Gen Start: the inverter can be customized to start up a generator when the battery voltage goes low.When the inverter goes to low battery alarm, it can send a signal to start a generator, and turn the generator off after battery charging is finished. The auto Gen start feature will only work with generators designed to work with this feature.
- Protections: AC input over voltage protection/AC Input low voltage protection/Low battery alarm/High battery alarm /Over temperature protection/Over load protection Short Circuit protection (1s after fault) /Back feeding protection.
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
- 6000W Low Frequency Pure Sine Inverter With Charger.
- AC/Battery Priority Selector.
- Automatic Generator Start.
- Safety and Convenient.
- The low frequency inverter can power all kinds of appliances.
- LCD Display, Remote Control.
- Low Idle Consumption.
- 7 battery type settings for charger.
- Multi Stage Smart charger 60+/-5A, charger can be disable.
- 10msec typical transfer time.
- 6000W 48V Low Frequency Pure Sine Inverter
- English Manual
- Remote Control
- BTS Cable
- Unit Weight: 72LB
- Unit Size: 27.5 x 12.2 x 11.8 inch
- Shipping Weight: 79LB
- Shipping Size: 30 x 13.3 x 12.9 inch
- Continuous Output Power: 6000W
- Surge Rating: 18000W (20 Seconds)
- Output: AC 120V and AC 240V ,60HZ
- AC Input:240V
- Output Wave: Pure Sine Wave (bypass mode)
- Typical Transfer Time: 10ms (MAX)
- Nominal Efficiency: >88%
- Nominal Input Voltage: 48.0Vdc
- Minimum Start Voltage: 40.0Vdc
- Low Battery Alarm: 42.0Vdc-44.0Vdc
- Low battery Trip: 40.0Vdc-42.0Vdc (select by SW1)
- High Voltage Alarm: 64.0Vdc
- Low battery Voltage Restart: 52Vdc
- Idle Consumption: 81W
- Power Saver Mode Idle Consumption: 30W
AC Charger :
- Charger Rate: 60+/-5A
- AC input Range (Grid or Generator): 80V-140VAC/90V-140VAC (select by SW2), 140V-270VAC/184V-253VAC (select by SW2)
- Over Charge Protection Shutdown:62.8V
- Selectable Charge Setting based on battery type
- Adjustable charge current: off 0%-100%
- 3-step intelligent battery charger
Download LFP Series Pure Sine Wave Inverter/Charger User's Manual
Frequently Questions Answer
1. Is this unit a grid-tie inverter?
Dear Customer, this is a pure sine wave inverter, it's off the grid one, thanks.
2. What is the "low idle current"? How many watts?
Dear Customer, the idle consumption under saver-off is 1.7A, the idle consumption under saver-on is 0.63A, thanks.
3. Can I hook my solar panels directly to the controller or do I still need a solar battery controller?
Dear Customer, you need have an external solar controller if you want it work with solar panels, thanks.
